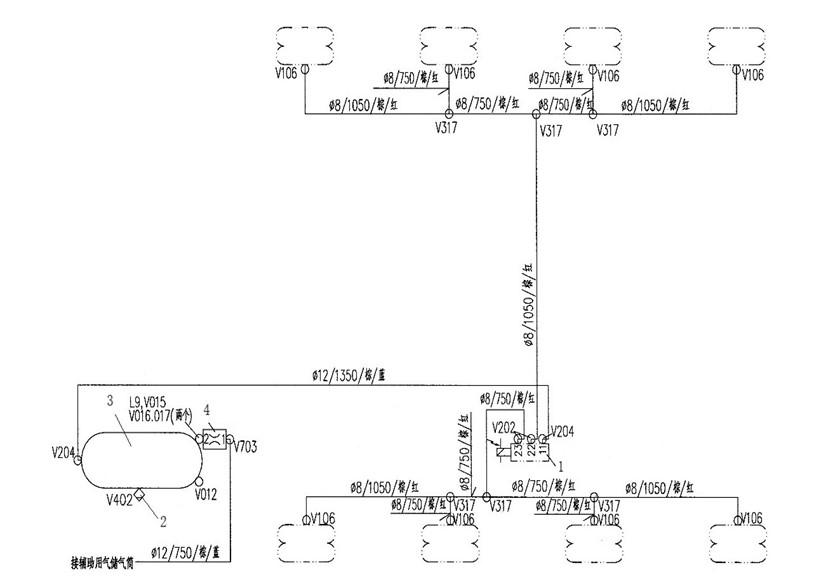

8830062 Brake lines and valves for air suspension

8830062 Brake lines and valves for air suspension
Num	Hot Num	Diagram No.	Name	Quantity
2	1	WG9000360531	ECAS electromagnetic valve	001
63	2	WG9000361402	Drain valve	001
11	3	WG9000360796	Aluminium Air Reservoir Φ276/40L	001
28	4	WG9000360556	Charging Valve	001
4	5	WG9918270215	ECAS electromagnetic valve bracket	001
7	6	ZQ1851435TF6	Hexagon bolts with flange	002
8	7	ZQ32314T13F6	Hexagon nuts with flange	002
9	8	ZQ150B0865	Hexagon head bolts	002
10	9	ZQ340B08	Hexagon nuts ,style 1	002
13	10	WG9925360840	Bracket	002
18	11	WG9925360874	Sleeve	004
21	12	ZQ1841065TF6	Hexagon bolts with flange	004
22	13	ZQ32010T13F6	Hexagon nuts with flange	004
23	14	WG9700360007	Strap assembly (Φ276)	002
25	15	Q40110	Washer	002
26	16	Q5101048	Pin	002
27	17	Q5003214	Pin	002
30	18	190003559385	Nozzle	001
31	19	WG9000361015	Nut	001
33	20	WG9000361016	Gasket	002
35	21	WG9000361017	O-ring	002
37	22	WG9000361502	Nut	001
39	23	WG9000361703	Nozzle	001
41	24	WG9000361004	Gasket	008
43	25	WG9000361005	Clip	008
45	26	WG9000361006	Nut	008
47	27	WG9000361007	Gasket	005
49	28	WG9000361008	Clip	005
51	29	WG9000361009	Nut	005
53	30	WG9000361012	Plug	001
55	31	WG9000361106	Nozzle	008
57	32	WG9000361202	Nozzle	002
59	33	WG9000361204	Nozzle	003
61	34	WG9000361317	Nozzle	006
65	35	190003179781	Plastic tube	032
66	36	190003179785	Plastic tube	006
67	37	WG9100360135	Spacer	010
71	38	811W97401-0631	CABLE BINDER 7,6X368	020
73	39	811W97401-0589	CABLE BINDER 4,8X360	010
75	40	190003179046	Shield sleeve	120
76	41	190003179046	Shield sleeve	120
77	42	190003179046	Shield sleeve	120
78	43	190003179046	Shield sleeve	120
79	44	190003179046	Shield sleeve	120
80	45	190003179046	Shield sleeve	120
81	46	190003179046	Shield sleeve	120
82	47	190003179046	Shield sleeve	120
83	48	AZ9918270211		002
