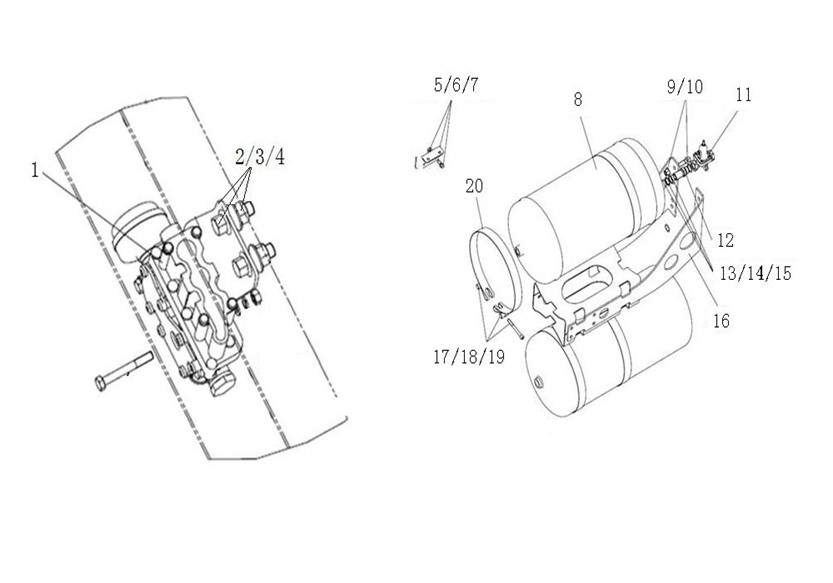

8830094 Brake lines and valves for air suspension

8830094 Brake lines and valves for air suspension
Num	Hot Num	Diagram No.	Name	Quantity
2	1	WG9000360531	ECAS electromagnetic valve	001
4	2	WG9918270215	ECAS electromagnetic valve bracket	001
7	3	ZQ1851435TF6	Hexagon bolts with flange	002
8	4	ZQ32314T13F6	Hexagon nuts with flange	002
95	5	WG9918270212	Bracket	002
97	6	ZQ1840820	Hexagon bolts with flange	004
98	7	ZQ32008	Hexagon nuts with flange	004
11	8	WG9000360794	Aluminium Air Reservoir Φ276/30L	002
20	9	ZQ1851230	Hexagon bolts with flange	006
21	10	ZQ32312	Hexagon nuts with flange	006
35	11	WG9000360556	Charging Valve	001
37	12	190003559385	Nozzle	001
38	13	WG9000361015	Nut	001
40	14	WG9000361016	Gasket	002
42	15	WG9000361017	O-ring	002
16	16	AZ9925360800	Bracket assembly	001
34	17	Q218B0880	Screw	004
29	18	WG700 550013	Pin	004
24	19	WG09 190017	Pin	004
22	20	WG9700360002	belt assembly	004
9	21	ZQ150B0865	Hexagon head bolts	002
10	22	ZQ340B08	Hexagon nuts ,style 1	002
44	23	WG9000361502	Nut	001
46	24	WG9000361703	Nozzle	001
48	25	WG9000361004	Gasket	008
50	26	WG9000361005	Clip	008
52	27	WG9000361006	Nut	008
54	28	WG9000361007	Gasket	006
56	29	WG9000361008	Clip	006
58	30	WG9000361009	Nut	006
60	31	WG9000361012	Plug	002
62	32	WG9000361106	Nozzle	008
64	33	WG9000361202	Nozzle	002
66	34	WG9000361204	Nozzle	005
68	35	WG9000361317	Nozzle	006
70	36	WG9000361402	Drain valve	002
72	37	190003179781	Plastic tube	032
73	38	190003179785	Plastic tube	006
74	39	WG9100360135	Spacer	010
77	40	WG9100360134	Spacer	010
80	41	WG9003171393	Cable binder	020
83	42	WG9003171390	Cable binder	010
86	43	190003179046	Shield sleeve	120
94	44	AZ9918270211		002
