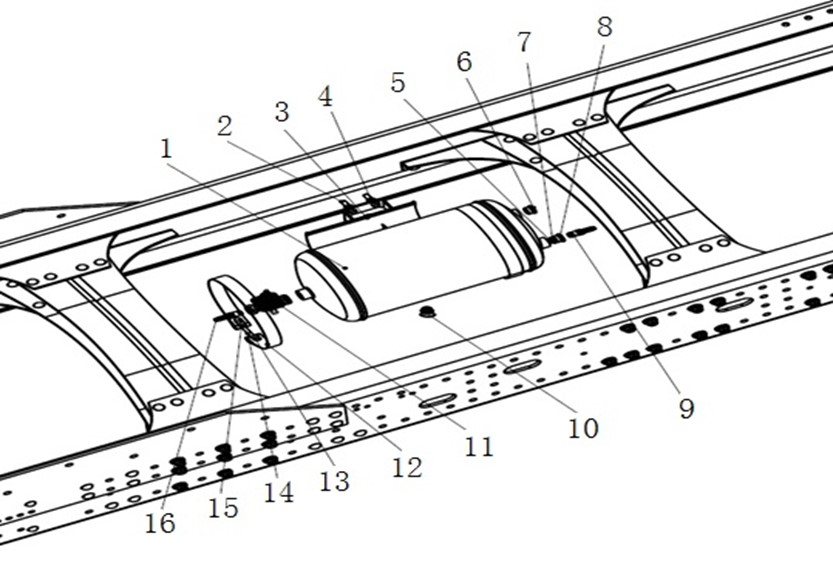

8830221 Al. Air Reservoir

Num

Hot Num

Diagram No.

Name

Quantity

Vertion

Disuse Time

Unit Code

3

1

WG9100360799

Aluminium Air Reservoir Φ246/20L

001

8830221

21

2

ZQ1841035TF6

Hexagon bolts with flange

004

8830221

15

3

WG9100360111

Bracket assembly for Air Reservoir

001

8830221

22

4

ZQ32010T13F6

Hexagon nuts with flange

004

8830221

5

5

WG9000361007

Gasket

002

8830221

11

6

WG9000361012

Plug

001

8830221

7

7

WG9000361008

Clip

002

8830221

9

8

WG9000361009

Nut

002

8830221

43

9

WG9000361106

Nozzle

002

8830221

13

10

WG9000361402

Drain valve

002

8830221

33

11

WG9000360519

Valve

001

8830221

23

12

WG9700360003

belt assembly

002

8830221

26

13

WG09 190017

Pin

002

8830221

32

14

Q218B0880

Screw

002

8830221

29

15

WG700 550013

Pin

002

8830221

45

16

WG9000361104

Nozzle

002

8830221

35

17

WG9000361007

Gasket

002

8830221

37

18

WG9000361008

Clip

002

8830221

39

19

WG9000361009

Nut

002

8830221

41

20

ZQ1840880TF6

Hexagon bolts with flange

001

8830221

42

21

ZQ32008T13F6

Hexagon nuts with flange

001

8830221

47

22

WG9003170012

nylon pipe

010

8830221

50

23

WG9003170008

nylon pipe

010

8830221
