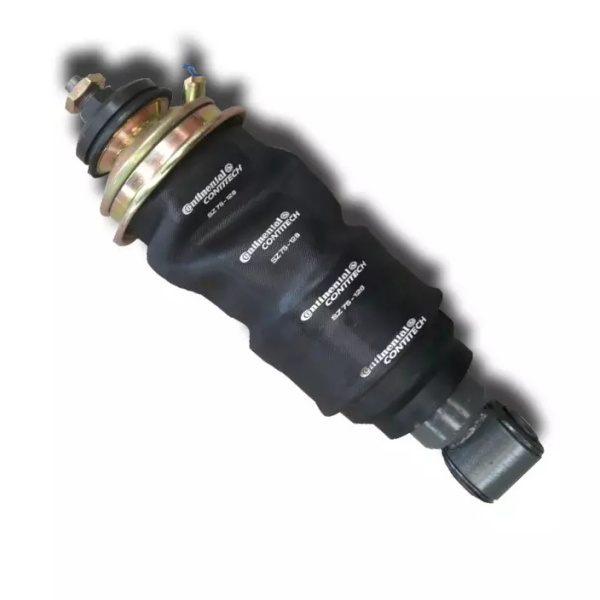

‌Genuine Sinotruk HOWO A7 Heavy-Duty Shock Absorber AZ1664430103 - OEM Suspension Strut for Mining & Long-Haul Applications

‌Genuine Sinotruk HOWO A7 Twin-Tube Shock Absorber (Part No. AZ1664430103)‌

This OEM ‌hydraulic damper‌ controls suspension oscillation on HOWO A7 trucks, dissipating kinetic energy from road impacts. It prevents axle hop, maintains tire contact, and reduces frame stress during off-road operation or heavy payloads.

‌Technical Specifications‌:

• ‌Part Number‌: AZ1664430103 (2025 upgraded version)
• ‌Compatibility‌: HOWO A7 6×4/8×4 models with ECAS/steel spring suspension
• ‌Type‌: Gas-charged twin-tube hydraulic
• ‌Dimensions‌:
  • Extended Length: 680mm
  • Collapsed Length: 430mm
  • Stroke: 250mm
  • Body Diameter: 65mm
• ‌Mounting‌:
  • Top: M14 eyelet (35mm bore)
  • Bottom: M16 stem (Ø24mm)
• ‌Performance Data‌:
  • Compression Force: 3,850N at 0.52m/s
  • Rebound Force: 8,200N at 0.52m/s
  • Foaming Resistance: <15% fade after 2M cycles
• ‌Fluid Capacity‌: 385ml SAE #493 damping oil
• ‌Pressure‌: 25 bar nitrogen charge
• ‌Temperature Range‌: -45°C to +160°C
• ‌Certifications‌: ISO 9001:2015, ISO 16750-3, ECE R90

‌Engineering Advantages‌:
 ‌Durability‌: Hard-chromed piston rod (0.25mm thickness)
 ‌Sealing‌: Triple-lip wiper + PTFE guide bearing
 ‌Fluid Control‌: Precision laser-drilled base valve
 ‌Heat Dissipation‌: External cooling fins
 ‌Corrosion Protection‌: Salt-spray tested >720 hours

‌Why Genuine OEM?‌

• Matches factory damping curves (±5%)
• 60% longer service life vs aftermarket
• Prevents U-bolt fatigue fractures
• Maintains tire contact patch integrity
• 2-year/unlimited km warranty

‌Risk Warning‌:
Non-OEM shocks cause:

• Accelerated spring failure (38% shorter lifespan)
• +25% tire wear on drive axles
• Frame cracking from harmonic vibrations
• ECAS system calibration errors

‌Installation Criticals‌:

• Always replace in axle pairs
• Torque values:
  • Top mount: 95Nm ±5Nm
  • Bottom mount: 130Nm ±10Nm
• Post-installation: Avoid full suspension extension for 48h
• Requires wheel alignment after replacement
