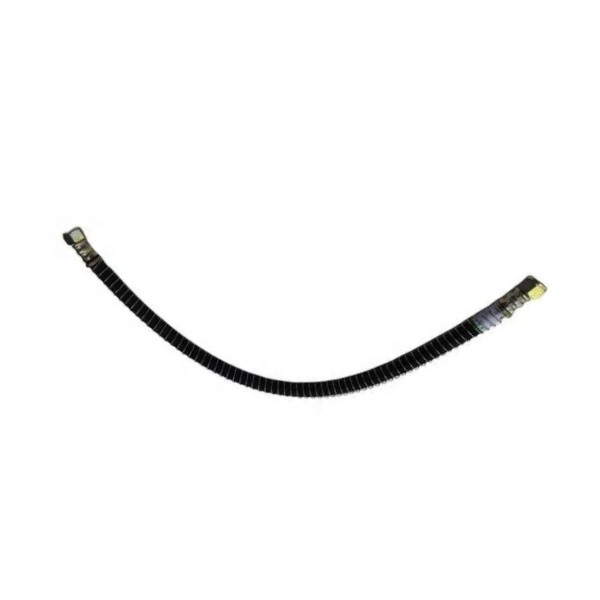

Genuine SINOTRUK HOWO Air Brake Hose WG17017360470 OEM Spare Part

1. PRODUCT IDENTIFICATION
--------------------------------------------------------------------------------
- Product Name:        Genuine SINOTRUK HOWO Air Brake Hose
- Part Number (OEM):   WG17017360470
- Brand:               SINOTRUK (China National Heavy Duty Truck Group)
- Application:         HOWO Series Heavy-Duty Trucks and Commercial Vehicles
- Product Type:        Pneumatic Brake System Component – High-Pressure Air Hose
- Compliance Standard: GB/T 7129, ISO 6803, FMVSS No. 106, ECE R83

2. DESCRIPTION & FUNCTION
--------------------------------------------------------------------------------
The WG17017360470 air brake hose is a factory-original flexible connector designed for the pneumatic braking system in SINOTRUK HOWO trucks. It serves as a critical link between rigid air lines and moving components (e.g., axles, suspension systems), allowing uninterrupted transmission of compressed air under high pressure without leakage or structural fatigue.

Constructed with multi-layer synthetic rubber compounds reinforced with braided polyester or steel wire, this hose ensures durability, resistance to abrasion, ozone, and extreme temperatures (-40°C to +120°C). The hose maintains consistent internal diameter performance to support rapid air response times essential for safe braking operations.

3. TECHNICAL SPECIFICATIONS
--------------------------------------------------------------------------------
- Material Composition:
  • Inner Tube: Oil-resistant synthetic rubber (NBR-based)
  • Reinforcement Layer: Two-ply high-tensile braided fiber/steel wire
  • Outer Cover: Weather, UV, and abrasion-resistant EPDM rubber

- Dimensions:
  • Nominal Inner Diameter: 10 mm (3/8 inch)
  • Overall Length: 470 mm ±10 mm (customizable upon request)
  • Fitting Connection Type: Push-on or Flared Compression (G1/4" BSP parallel thread)

- Pressure Ratings:
  • Maximum Operating Pressure: 1.0 MPa (145 psi)
  • Burst Pressure: ≥4.0 MPa (580 psi)
  • Test Pressure: 2.0 MPa (290 psi) for 1 minute, no leakage

- Temperature Range: -40°C to +120°C (-40°F to +248°F)
- Bend Radius Minimum: 60 mm (to prevent kinking and flow restriction)

4. APPLICATION & FITMENT
--------------------------------------------------------------------------------
This genuine air brake hose is engineered exclusively for compatibility with SINOTRUK HOWO truck models, including but not limited to:
• HOWO A7 Series
• HOWO T7H Tractors
• HOWO 6×4 & 8×4 Dump Trucks / Concrete Mixers
• SINOTRUK Mining and Construction Variants

It is typically installed in:
- Axle-to-chassis air connections
- Suspension-mounted brake chambers
- Relay valve supply lines
- Trailer gladhand coupling subsystems (when specified)

Note: Always verify fitment using VIN or chassis number through SINOTRUK’s official parts catalog (EPS system). Non-OEM hoses may compromise brake timing, increase chattering, or fail prematurely under load.

5. INSTALLATION, MAINTENANCE & SAFETY GUIDELINES
--------------------------------------------------------------------------------
• Installation:
  - Use only OEM-approved fittings and clamps.
  - Avoid twisting during installation; ensure straight alignment.
  - Torque fittings to 25–30 Nm using calibrated tools.
  - Conduct post-installation air leak test at 0.8 MPa for 5 minutes.

• Maintenance:
  - Inspect every 10,000 km or quarterly for cracks, bulges, abrasion, or leakage.
  - Replace immediately if signs of aging, softening, or delamination appear.
  - Lubrication: Never apply oil or solvent-based lubricants to the hose surface.

• Safety Notice:
  - A failed brake hose can result in partial or total loss of braking power.
  - Only trained technicians should service pneumatic brake systems.
  - Depressurize the entire air system before disassembly.

6. PACKAGING & ORDERING INFORMATION
--------------------------------------------------------------------------------
- Packaging: Sealed polyethylene bag inside corrugated cardboard box (1 piece per unit)
- Barcode: Included on label (GS1-128 format)
- Shelf Life: 5 years from manufacturing date when stored in dry, dark environment
- Storage Conditions: Keep away from direct sunlight, heat sources, ozone generators, and chemicals
- Country of Origin: China
- Manufacturer: SINOTRUK (International) Co., Ltd.
  Address: No. 1699, Jingshi Road, Jinan City, Shandong Province, China

7. QUALITY ASSURANCE & WARRANTY
--------------------------------------------------------------------------------
- Certification: ISO 9001, IATF 16949, CCC, and CNAS-accredited testing reports available
- Testing Performed: Pulse endurance (≥300,000 cycles), flexural fatigue, thermal cycling, burst proof
- Warranty: 12 months or 150,000 km — whichever comes first — against manufacturing defects
- Counterfeit Warning: Purchase only through authorized SINOTRUK dealers or distributors. Verify authenticity via QR code on packaging.
