High-Quality SINOTRUK HOWO Clutch Shift Fork AZ2214220001 - OEM Truck Gearbox Accessory

Product Name:‌

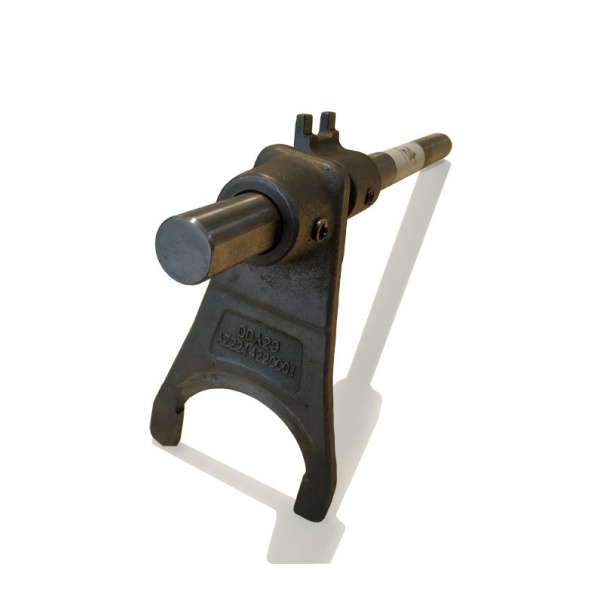

SINOTRUK HOWO Clutch Shift Fork AZ2214220001 - Genuine Gearbox Spare Part‌

Description:‌
The ‌SINOTRUK HOWO Clutch Shift Fork (AZ2214220001)‌ is a precision-engineered component for heavy-duty truck gearboxes. Designed to ensure smooth gear shifting and durability, it is manufactured to OEM specifications for optimal performance in demanding conditions.

Key Features:‌
Material:‌ High-strength alloy steel (heat-treated for wear resistance)
Compatibility:‌ Fits SINOTRUK HOWO A7, T7H, 371, and T5G models
Weight:‌ 1.2 kg
Certification:‌ ISO 9001, RoHS compliant
Technical Specifications:‌
Parameter Value
Length 180 mm
Width 45 mm
Bolt Pattern M12 x 1.5
Max Load Capacity 500 Nm

Installation Notes:‌

Preparation‌:
Ensure the gearbox is depressurized before removal.
Clean the mounting surface to remove debris.

Installation Steps‌:
Align the shift fork with the gearbox splines.
Secure bolts with a torque wrench (30-35 Nm).

Post-Installation‌:
Test gear shifting for smooth operation.
Apply lithium grease to moving parts
