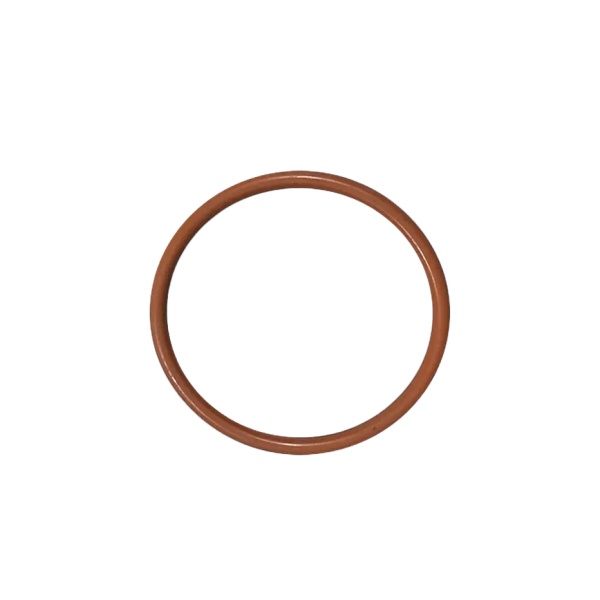

‌Sinotruk MC11 Engine O-Ring 200V96501-0502 - High-Temperature Fuel System Seal Kit

‌Genuine Sinotruk MC11 Engine O-Ring (200V96501-0502)‌
OEM-certified sealing solution for HOWO T7H/SITRAK C7H trucks with MC11 series engines:

‌Technical Specifications:‌

• ‌Material‌: Fluorocarbon Rubber (FKM) with PTFE coating
• ‌Temperature Range‌: -30°C to +250°C (continuous operation)
• ‌Pressure Resistance‌: 35 MPa static / 25 MPa dynamic
• ‌Dimensions‌:
  • Inner Diameter: 42.5 mm (±0.1 mm)
  • Cross-Section: 3.55 mm (±0.05 mm)
• ‌Certifications‌: ISO 3601-1 Class A, SAE J200
• ‌Compatibility‌:
  • MC11.31/36/44/50 engine variants
  • Fuel injector seals, HP pump connections

‌Key Features:‌
✔️ Direct replacement for hardened, cracked, or leaking seals
✔️ 500+ thermal cycles endurance (JIS K 6262 tested)
✔️ Chemical resistance to diesel, biodiesel, and lubricants
✔️ Includes installation torque guidelines (8-10 N·m)
