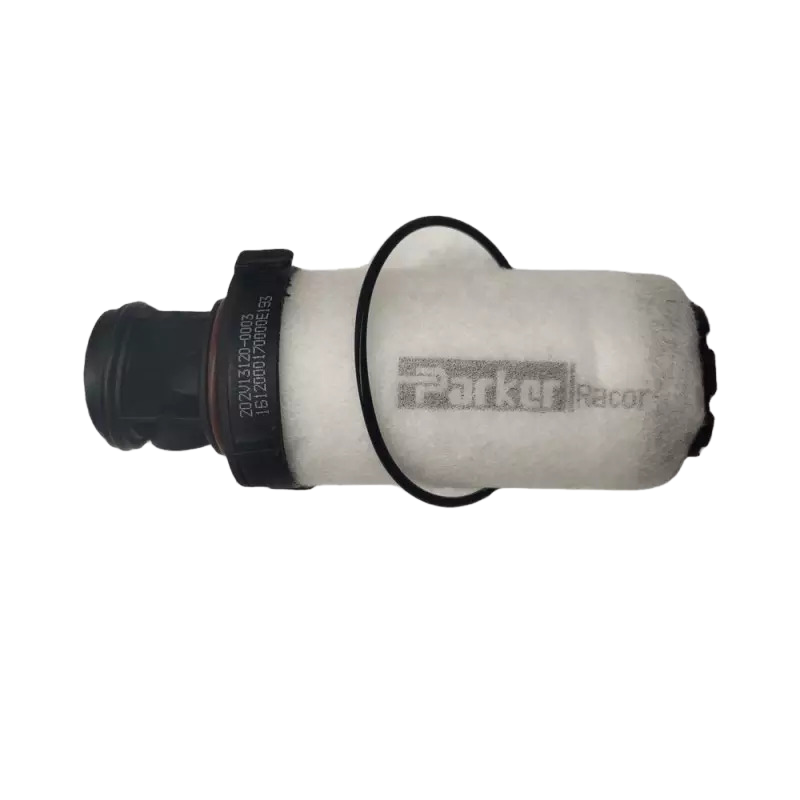

‌Genuine Sitrak NG 202V13120-0003 Low Pressure Fuel Filter Element CNGLNG Engine Protection

‌Sitrak Genuine Low Pressure Fuel Filter Core | Part# 202V13120-0003 for Natural Gas Engines‌

Critical filtration component for Sitrak NG series CNG/LNG trucks, protecting fuel injectors and pressure regulators from abrasive particles. Specifically engineered for low-pressure natural gas systems (0.5-7 bar range) with enhanced water separation capabilities.

‌Technical Specifications:‌

• ‌OEM Part Number:‌ 202V13120-0003 (Authentic Sinotruk Code)
• ‌Compatibility:‌
  • Sitrak C7H/C5H NG Series (Euro VI)
  • SINOTRUK HOWO NZ Series CNG Trucks
  • MAN E2876 LNG Engines
• ‌Filtration Performance:‌
  • Filtration Efficiency: 99.9% at 10 microns (ISO 19438)
  • Water Separation: ≥95% at 0.1% contamination (ISO 16332)
  • Dirt Holding Capacity: 38g (SAE J1985)
• ‌Media Technology:‌
  • 5-Layer Composite:
    1. Outer: Glass fiber pre-filter (50μm)
    2. Primary: Cellulose/synthetic blend (10μm)
    3. Core: Nanofiber coating (3μm absolute)
    4. Water-repellent silicone treated layer
    5. Steel reinforcement mesh
• ‌Pressure Parameters:‌
  • Max Operating Pressure: 7 bar (102 psi)
  • Pressure Drop: ≤0.25 bar @ 500L/hr flow
  • Burst Pressure: 25 bar
• ‌Environmental Ratings:‌
  • Temperature Range: -40°C to +120°C
  • Methane Compatibility: Compatible with H-gas/L-gas
  • Sulfur Resistance: ≤30 mg/m³ H₂S
• ‌Service Life:‌
  • 25,000 km standard duty
  • 15,000 km high-sulfur fuel (Asia/Mideast)

‌Failure Prevention:‌
⚠️ Clogged filters cause:

• Fuel starvation (Error codes: P0087/P0191)
• Injector corrosion ($800+ repair cost)
• LNG pump cavitation

✅ OEM Advantages:

• Prevents ice crystal formation in cold climates
• Special seal compound resistant to methane permeation
• 30% higher flow rate vs. aftermarket clones

‌Maintenance Protocol:‌

• Replacement Interval: Every 500 engine hours
• Priming: Automatic air-bleed valve included
• Warning: Never clean with compressed air
