SINOTRUK HOWO 400L D-Shape Fuel Tank – OEM WG9725550006

sinotruk howo 400l d-shape fuel tank wg9725550006, howo a7 400 liter fuel tank, howo truck diesel tank replacement

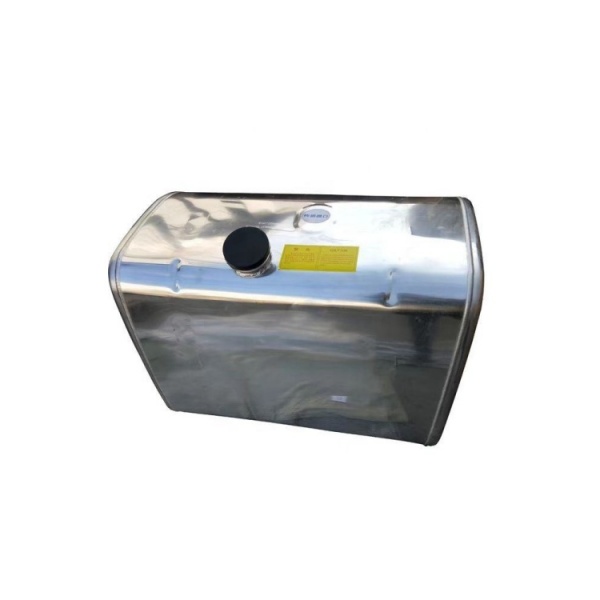

SINOTRUK HOWO 400L D-Shape Fuel Tank – OEM WG9725550006
*Heavy-duty diesel tank for HOWO A7 and compatible SINOTRUK trucks*

It is a direct OEM replacement manufactured to SINOTRUK’s original drawings. The D-shape profile maximizes ground clearance while lowering the center of gravity for better stability on uneven terrain.

Our workshop has supplied SINOTRUK HOWO fuel tanks to fleet operators, mining contractors, and military logistics units since 2015. Before shipping, every WG9725550006 undergoes:
Hydrostatic pressure test (1.5x working pressure)
Weld seam X-ray inspection (random batch sampling)
Anti-corrosion salt spray test (72 hours minimum)
Mounting hole thread verification

Part NameFuel Tank, D-Shape
OEM Number WG9725550006
Capacity 400 Liters (105.7 US gallons)
Fitment SINOTRUK HOWO A7 (also compatible with HOWO 371, 336, and some HOWO 6x4 / 8x4 chassis – verify mounting bracket spacing)
Shape D-shape (flat top, curved bottom)
Material Q235B carbon steel
Thickness 4 mm (body), 5 mm (end caps)
Internal Design 2 anti-slosh baffle plates
Outer Finish Epoxy primer + polyurethane topcoat (black) – salt spray resistant >300 hrs
Mounting Type Strap or direct bolt-through brackets (original HOWO chassis holes)
Included Ports Fuel sender mounting (6 holes), drain plug (M14), fuel outlet (M18), return line (M14)
Max Operating Pressure 0.03 MPa (non-pressurized, vented cap required)
Warranty 12 months against manufacturing defects / leaks
OEM Supplier CNHTC SINOTRUK (original design), produced under license
HS Code87089900
