Sinotruk Gearbox Parts

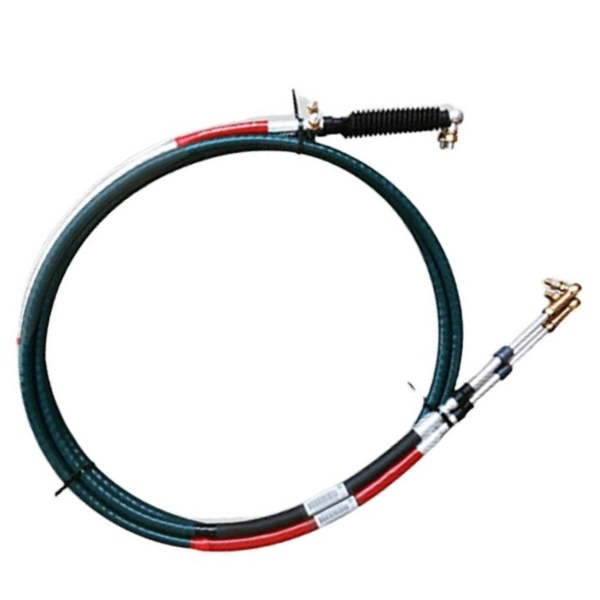

WG9719240112 Gear Shift Cable for SINOTRUK HOWO Heavy Duty Trucks

sinotruk spare parts
howo truck spare parts
sinotruk parts
howo parts
Product description: Buy WG9719240112 gear shift cable for SINOTRUK HOWO trucks. OEM quality, 3190mm length, direct fit replacement. Fast global shipping. Get a quote today.
INQUIRY

The WG9719240112 is built to the original factory spec. It measures 3190mm (125.6 inches) in total length, which is the exact fit for standard HOWO cab configurations. No cutting, no splicing, no guesswork — pull out the old one, thread this one through the same routing, and you're back in business.

Specification	Details
Part Number	WG9719240112
Product Name	Gear Shift Cable / Shift Flexible Shaft
Applicable Brand	SINOTRUK HOWO
Overall Length	3190mm (125.59 inches)
Material	Steel core wire with PVC outer sheath
Connector	Ball-end fittings on both ends
Application	Gear shift control system for HOWO truck
Quality Standard	OEM Standard, ISO9001 Certified
Warranty Period	6 months
Package	Independent export carton packaging
MOQ	1 PC

Vehicle Compatibility

This gear shift cable fits the following SINOTRUK HOWO models:

HOWO 4×2 tractor and cargo trucks
HOWO 6×4 dump trucks and tipper configurations
HOWO 8×4 heavy haulage variants
HOWO A7 series (verify cab type — some A7 variants use WG9719240111)
HOWO T7H early production models

Note: If you're running a HOWO T5G or SITRAK C7H, double-check your part number. Those models typically use WG9725240008 or WG9900243301 instead. Send us your VIN or a photo of your old cable if you're unsure — we'll match it for free.

Installation Guide

Replacing a gear shift cable on a HOWO truck isn't complicated, but doing it right the first time matters. Here's how most mechanics handle it:

Step 1 — Prep the Cab Park the truck on level ground and set the parking brake. Shift into neutral. Disconnect the battery if you're working near any electrical harnesses. Pop off the gear lever boot inside the cab to access the cable connection at the top.

Step 2 — Remove the Old Cable Unclip the cable from the gear lever mechanism. It's usually a ball-and-socket joint — lift and twist to release. Follow the cable routing down through the firewall grommet. Under the chassis, disconnect the lower end from the transmission selector arm. Remove any cable ties or clamps holding it to the frame. Pull the old cable out gently so you don't damage the routing path.

Step 3 — Compare and Route the New Cable Lay the old WG9719240112 next to the new one. Check that the end fittings, length, and sheath color match. Thread the new cable through the same firewall opening and along the factory routing clips. Don't let it rub against hot exhaust pipes or sharp frame edges — that'll shorten its life fast.

Step 4 — Connect Both Ends Attach the lower end to the transmission selector first. Make sure the ball joint clicks into place securely. Run it up to the cab and connect the upper end to the gear lever. Test the full range of motion before you button everything up.

Step 5 — Test Drive Start the engine and cycle through all gears with the clutch depressed. The lever should move smoothly with light resistance. If it feels notchy or binds, recheck the routing — the cable might be pinched or twisted.

Pro tip: Lubricate the ball joints with a light coat of grease during installation. It prevents corrosion and keeps shifting smooth for longer.

FAQ

Q: What is the length of WG9719240112 gear shift cable?
A: The WG9719240112 measures 3190mm (125.59 inches) in total length, which is the standard size for SINOTRUK HOWO 4×2, 6×4, and 8×4 truck configurations.

Q: Is WG9719240112 an original OEM part?
A: Yes, this part is manufactured to OEM specifications and carries ISO9001 certification. It matches the original factory part in dimensions, materials, and performance.

Q: What's the difference between WG9719240112 and WG9719240111?
A: WG9719240112 is the standard-length cable used in most HOWO models. WG9719240111 is typically found in HOWO A7 variants with extended cab configurations. Always verify your old part number before ordering.

Q: How long does shipping take for international orders?
A: We ship worldwide via DHL, FedEx, and sea freight. Express delivery takes 5–8 business days to most countries. Bulk orders by sea take 15–30 days depending on the destination port.

Q: Can I get a discount for bulk orders?
A: Absolutely. We offer tiered pricing starting at 50 pieces. Contact us with your quantity and destination for a formal quotation within 24 hours.
