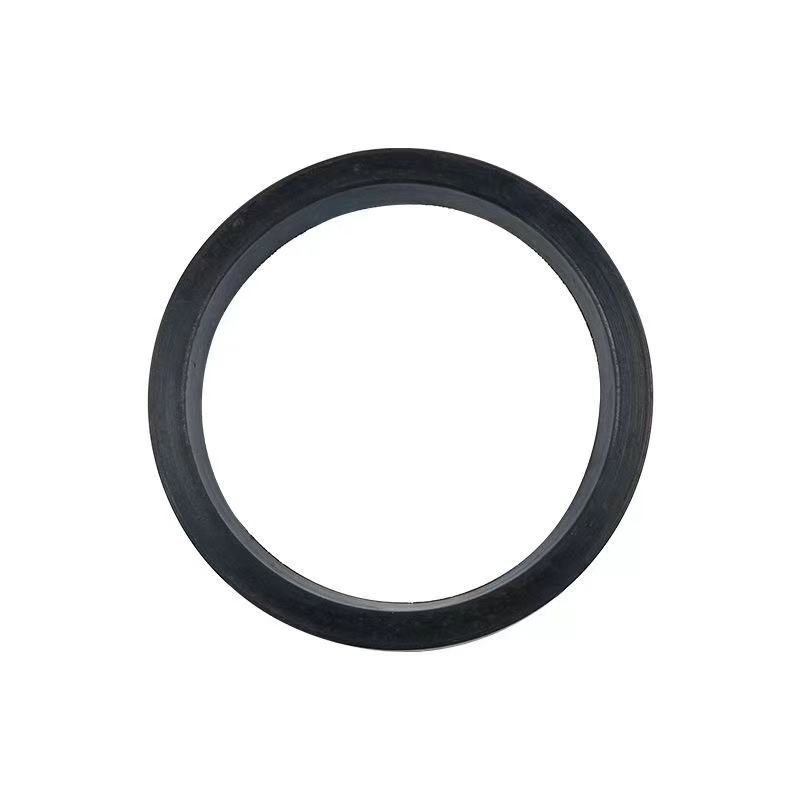

Genuine SINOTRUK HOWO T7H Transmission Thrust Washer 0750-101-158 - Heavy Duty Bearing Shim Plate

OEM SINOTRUK thrust washer (Part No. 0750-101-158) with these specifications:

• ‌Material Composition:‌
  • Base Material: C45E carbon steel (ISO 683-1)
  • Surface Treatment: Phosphate coating (8-12μm)
  • Hardness: HRC 40-45
• ‌Dimensional Specifications:‌
  • Outer Diameter: 85mm ±0.05mm
  • Inner Diameter: 52mm ±0.03mm
  • Thickness: 2.5mm ±0.02mm
• ‌Performance Characteristics:‌
  • Load Capacity: 1200N/mm²
  • Temperature Resistance: -30°C to +180°C
  • Surface Roughness: Ra ≤0.8μm
• ‌Compatibility:‌
  • HW19710 transmission models
  • HOWO T7H/SITRAK C7H (2016-2025)
  • Matches bearing assembly WG9731260402

The precision-ground parallel surfaces ensure accurate axial positioning while the oil retention grooves maintain consistent lubrication
