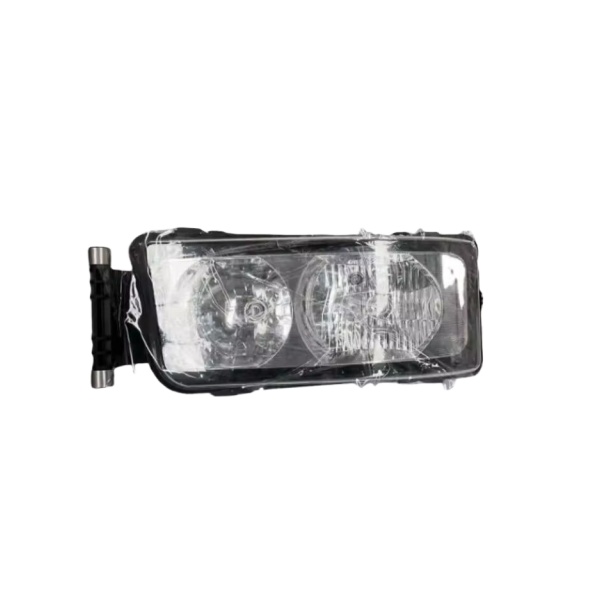

OEM Sinotruk SITARK Right Headlight Assembly 811W25101-6002 ECE R10 Certified LED Headlamp (Right Side Specific)

OEM Sinotruk SITARK Right Headlight Assembly 811W25101-6002  ECE R10 Certified LED Headlamp (Right Side Specific)

‌Technical Specifications‌:

• OEM Reference: 811W25101-6002 (Right Side Only)
• Compatibility: SITARK C7H/G7H 2022+ models with ADAS
• Light Source: Matrix LED with adaptive beam
• Color Temp: 5700K ± 5% (Pure White)
• Power Consumption: 48W low/65W high beam
• Luminous Flux: 3500lm (low)/5000lm (high)
• Beam Adjustment: Electric levelling (3-position)
• Housing: Magnesium alloy base + PMMA lens
• Protection: IP69K dust/waterproof
• Certifications: ECE R10 (EMC), ECE R148 (V2V)
• Smart Features: CAN Bus compatible

‌Installation Notes‌:

1. ‌Pre-Installation‌:

   • Reset ADAS calibration memory using diagnostic tool
   • Verify part orientation (RHD/LHD specific variants)

2. ‌Physical Installation‌:

   • Remove 4x Torx T30 screws from grill assembly
   • Disconnect 12-pin waterproof connector (pull orange lock tab first)
   • Align guide pins with body slots (↗ 45° insertion angle)

3. ‌Post-Installation‌:

   • Perform automatic headlight calibration via OBD port
   • Test beam pattern at 25m distance (ECE regulation pattern)
   • Apply silicone grease to connector seals

4. ‌Critical Warning‌:

   • Never install left-side unit (811W25101-6001) on right position
   • Avoid touching LED chips with bare hands
