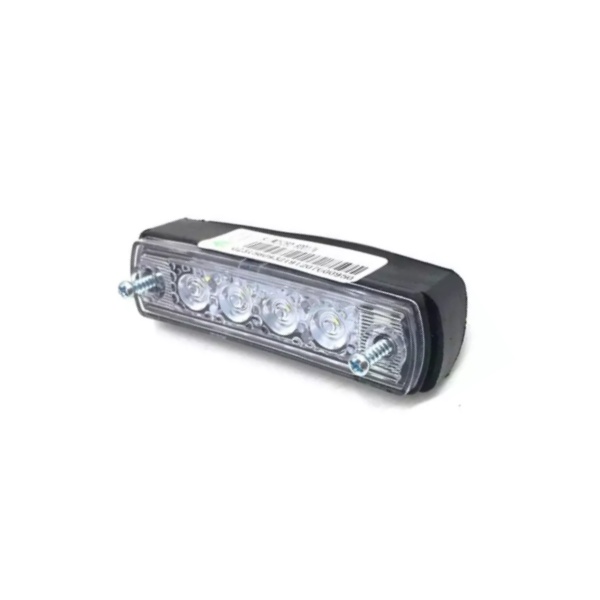

Genuine Sinotruk SITARK Cabin Roof Lamp 811W25260-6001 | Anti-Vibration LED Interior Light with Dimmable Function

Genuine Sinotruk SITARK Cabin Roof Lamp 811W25260-6001 | Anti-Vibration LED Interior Light with Dimmable Function

‌Technical Specifications‌:

• OEM Part Number: 811W25260-6001
• Compatibility: SITARK C7H/G7H/ZF Series Cab
• Light Type: COB LED Panel
• Color Temp: 4000K Neutral White
• Luminance: Adjustable 100-500 lux
• Power: 24V DC, 15W max
• Dimming: 5-level touch control
• Housing: Reinforced ABS + PC diffuser
• Mounting: ISO 9001 certified brackets
• Anti-Vibration: 5G vibration resistant
• Lifespan: 50,000 hours (L70)
• Certifications: ECE R118, CE, RoHS

Installation Notes‌:

1. ‌Preparation‌:

   • Disconnect battery negative terminal
   • Remove overhead console trim panel (4x Torx T20 screws)

2. ‌Wiring‌:

   • Match color-coded wires (Red=+24V, Black=Ground, Blue=Dimmer)
   • Use included waterproof connectors

3. ‌Mounting‌:

   • Align with existing mounting points
   • Secure with provided M5 bolts (8Nm torque)

4. ‌Calibration‌:

   • Test all dimming levels
   • Verify no light leakage at edges

5. ‌Safety Notice‌:

   • Do not exceed 15W load
   • Replace entire unit if diffuser is cracked
